YL-R0601M Uncooled IR Core
Compact, lightweight, low-power uncooled infrared core with 640x512 resolution.
Core Highlights

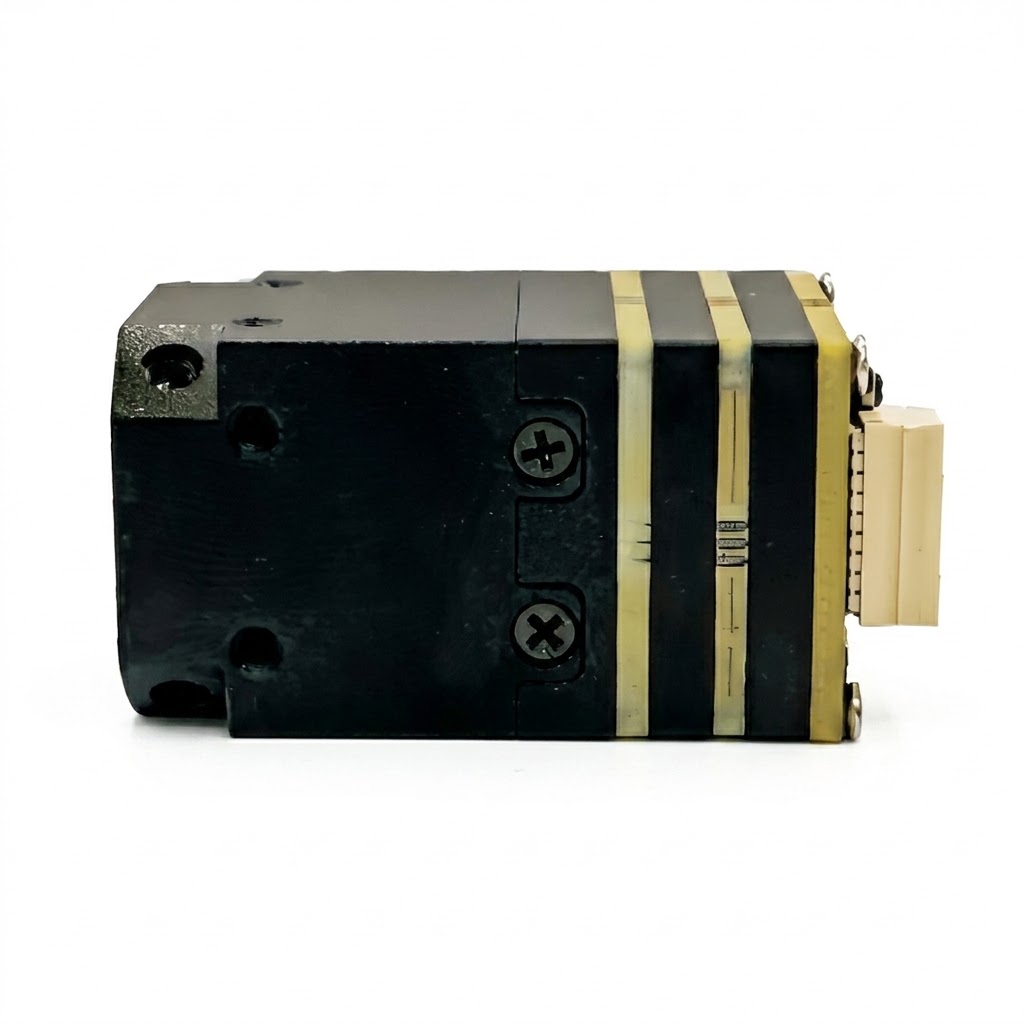

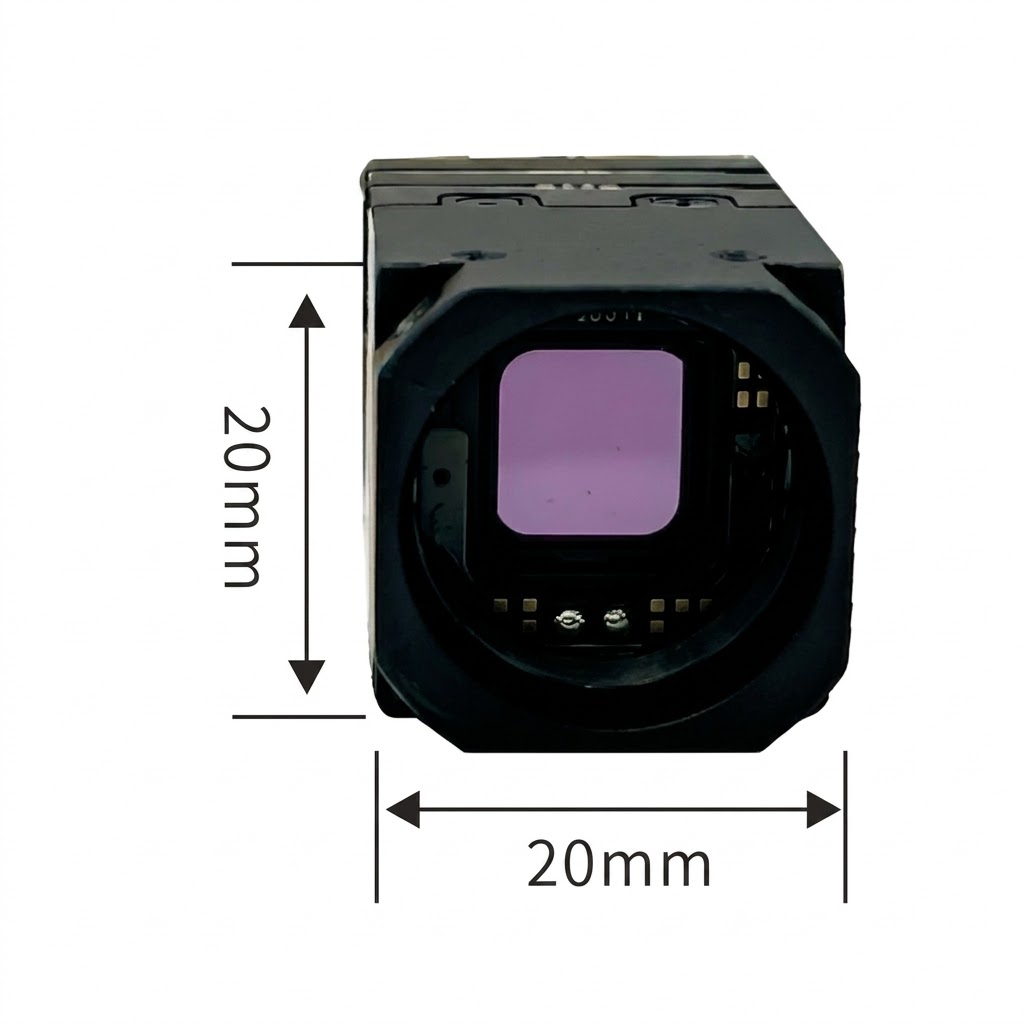

- Ultra-compact: core module only 38.5*20*20mm, about 27g
- High resolution: 640x512 with 12μm pixel pitch
- Ultra-low power: rated at only 1W for long stable operation

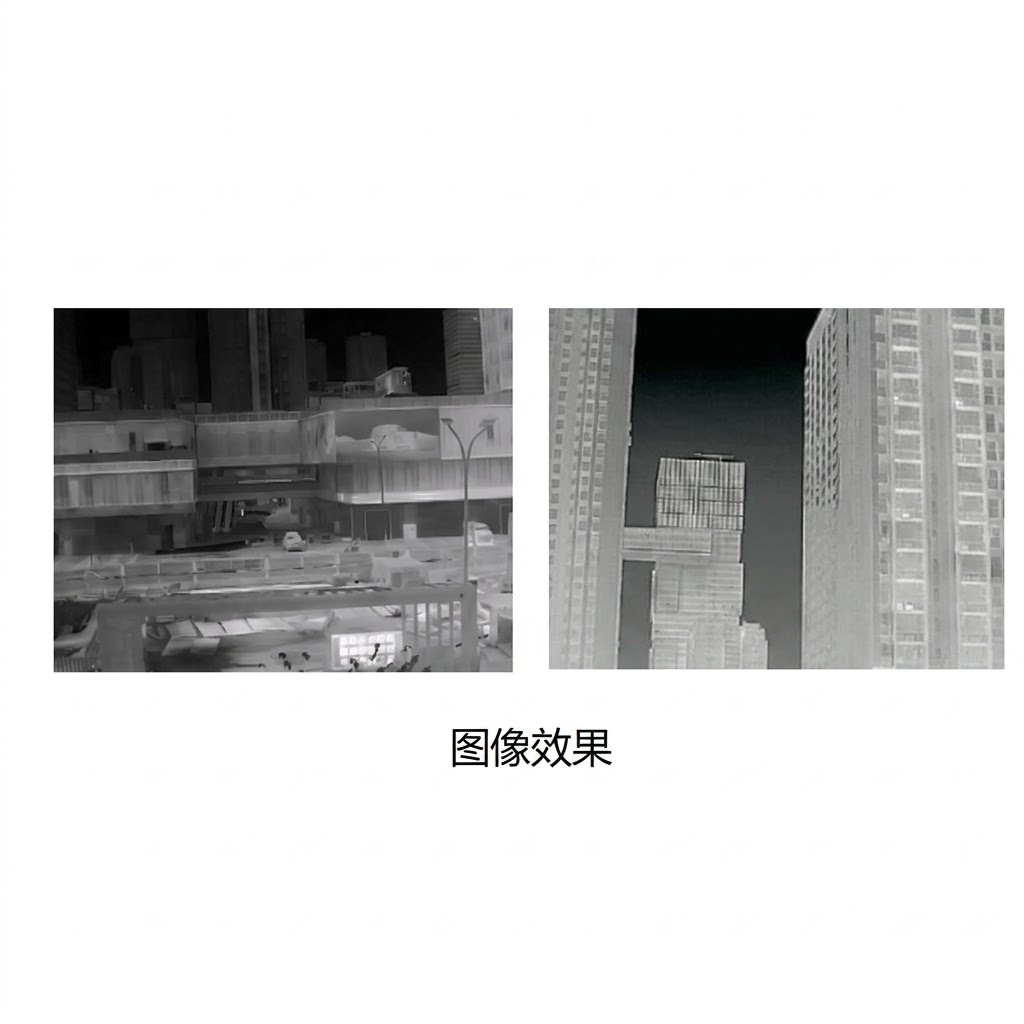

The YL-R0601M is a compact, lightweight, low-power uncooled infrared thermal core. Its modular design with vanadium-oxide sensing material delivers 640×512 resolution with a 12μm pixel pitch and 50Hz frame rate for smooth detection of fast-moving targets. Built-in detail enhancement, digital noise reduction (3DNR/2DNR), and non-uniformity correction ensure clear, stable images in complex environments. Rated at only 1W with TTL-232/USB2.0 and multiple analog/digital video outputs, it is easy to integrate into optoelectronic systems.

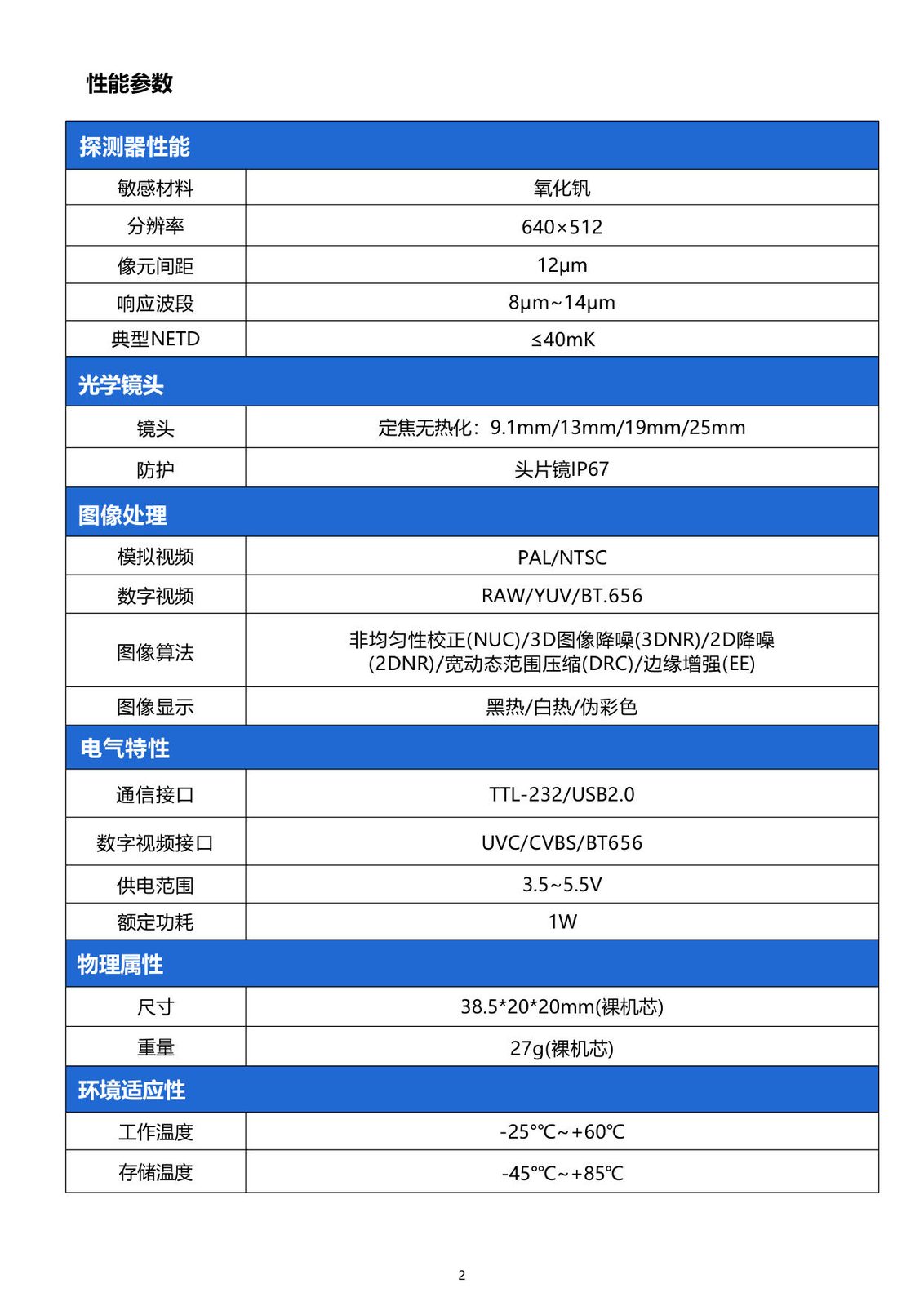

Key Features
Resolution— 640x512
Pixel Pitch— 12μm
Typical NETD— ≤40mK
Rated power consumption— 1W
Bare Caliber Weight— 27g
Spectral Band— 8μm~14µm
Application Scenarios
Security surveillanceVehicle-mounted night visionDrone surveillanceIndustrial Inspection
