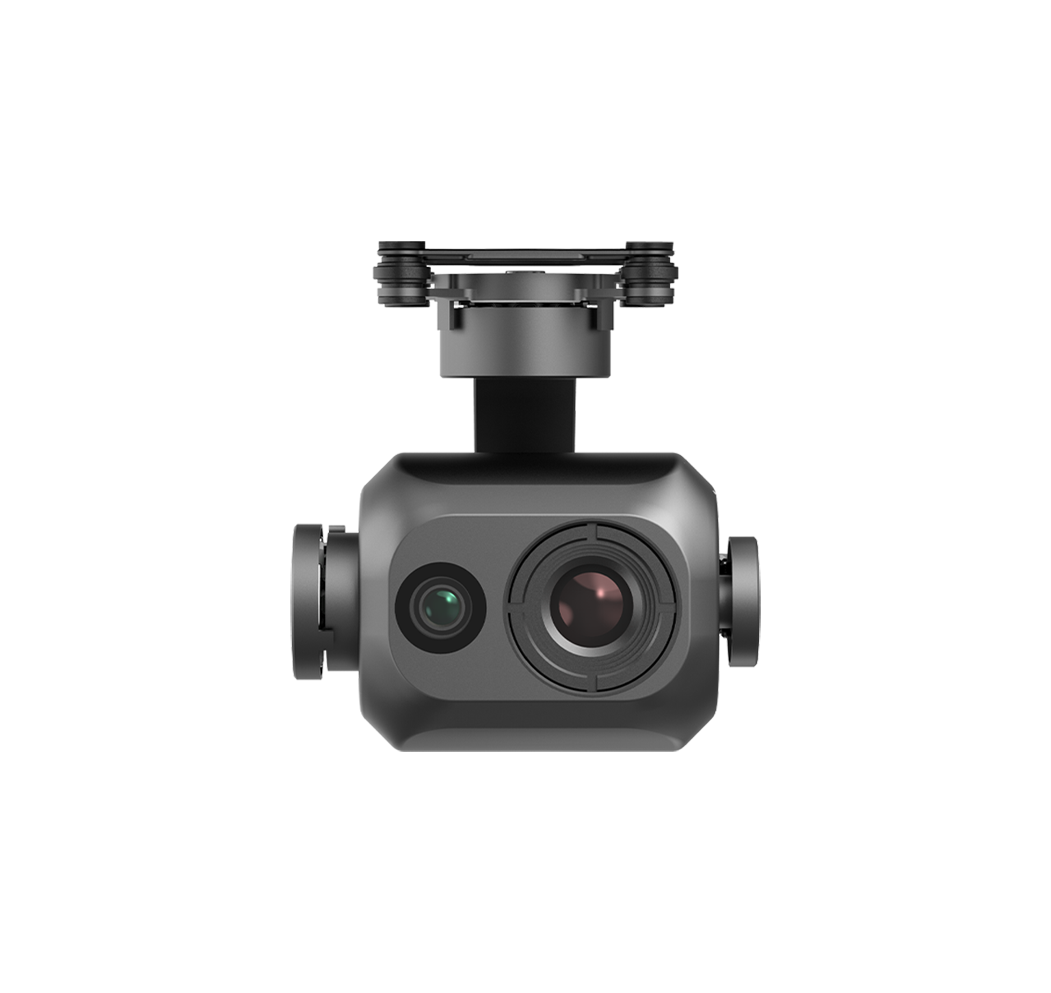

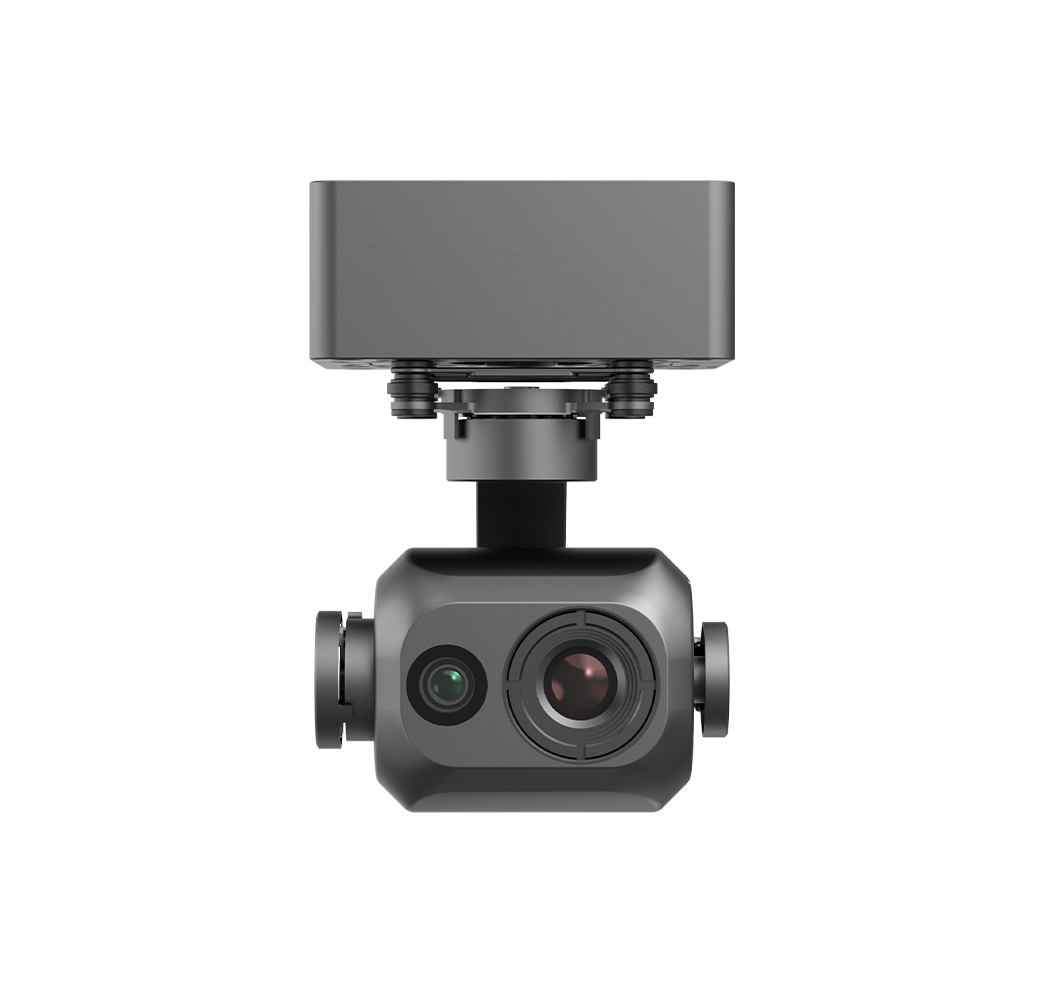

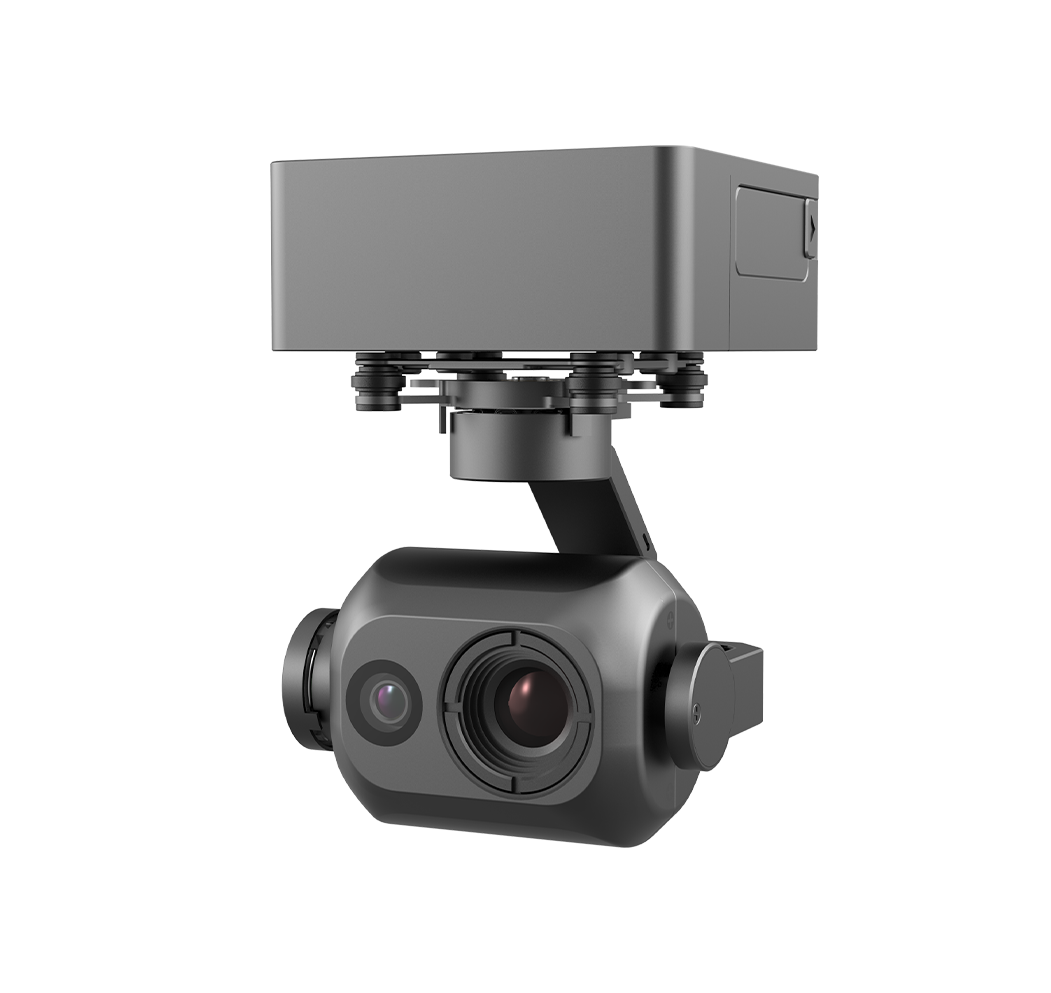

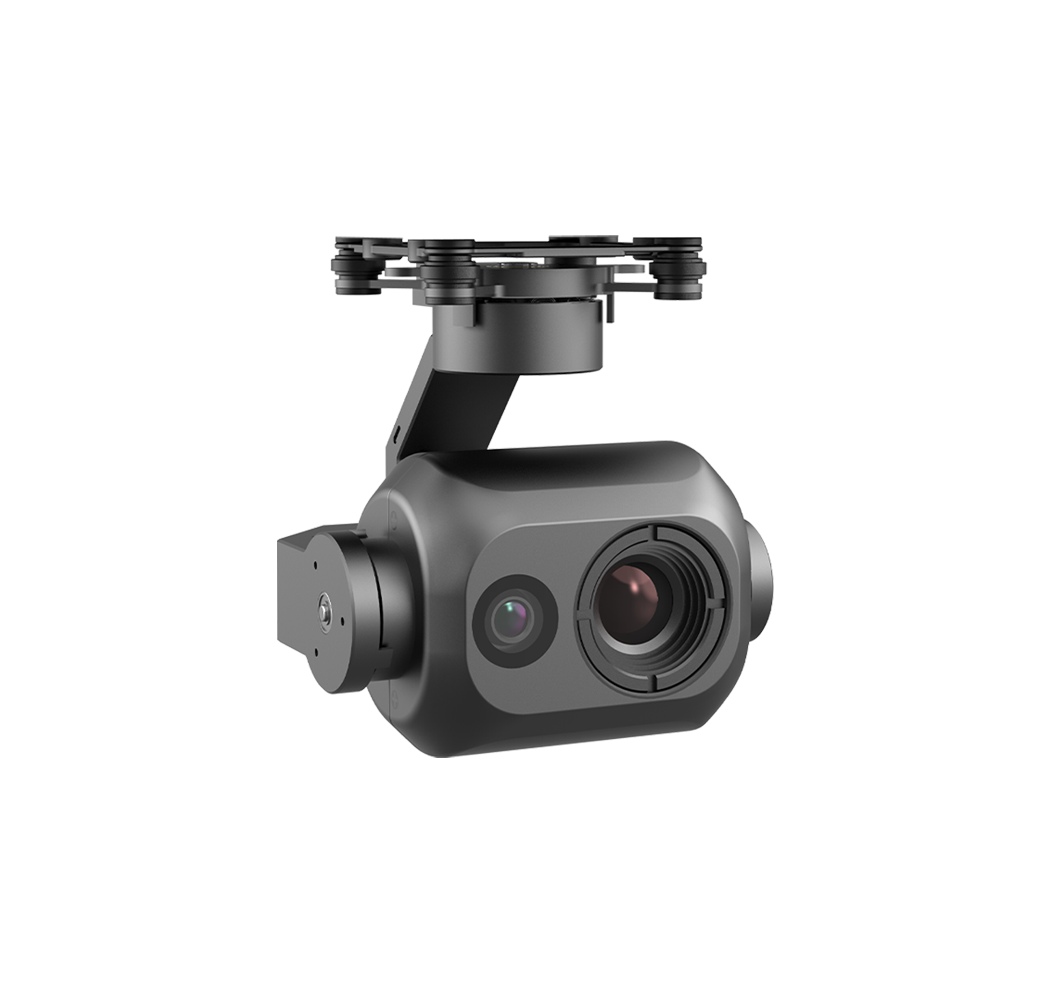

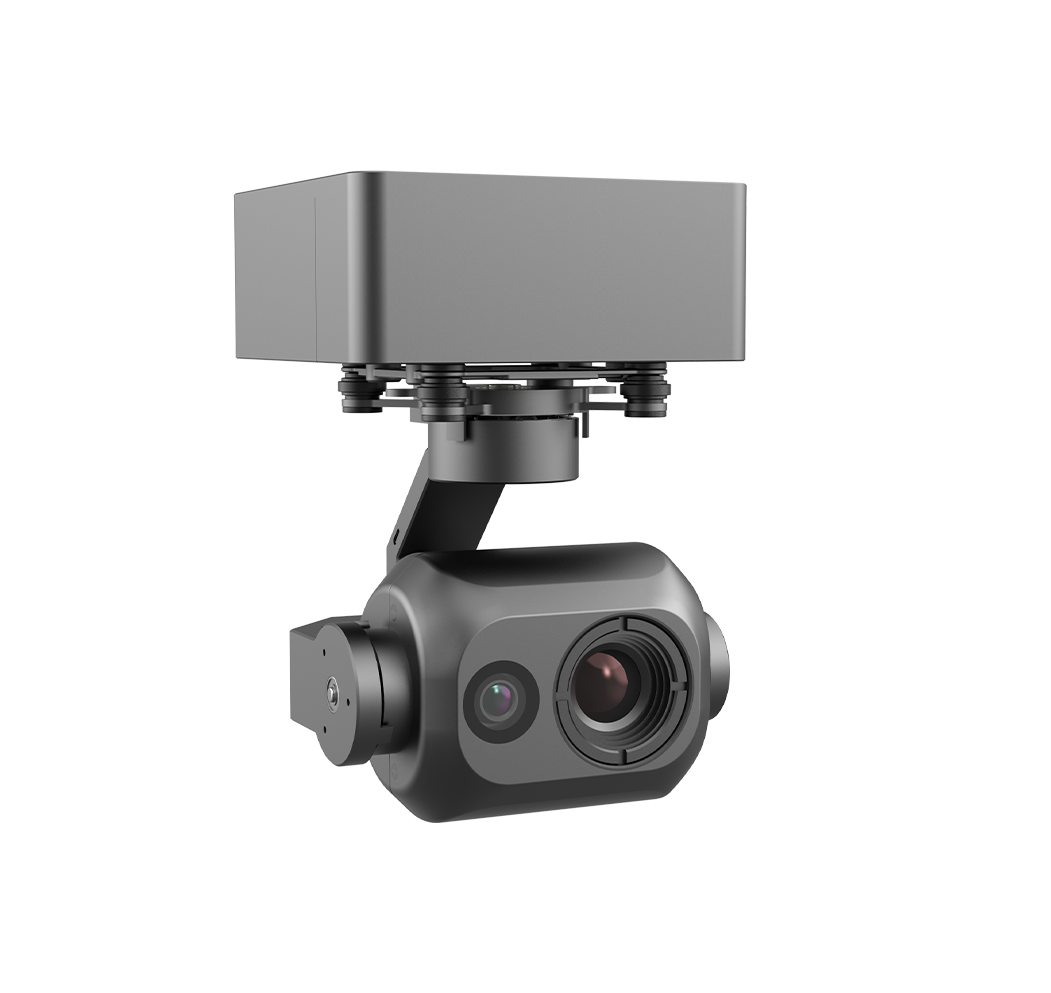

CGTD090 Micro 3-Axis Dual-Sensor Guided Gimbal
50MP visible + 640x512 thermal guided gimbal, ≤0.02° stabilization, 350m day recognition
Core Highlights
- 50MP camera with 8K photo
- ≤0.02° (1σ) stabilization accuracy
- 350m day / 120m night recognition

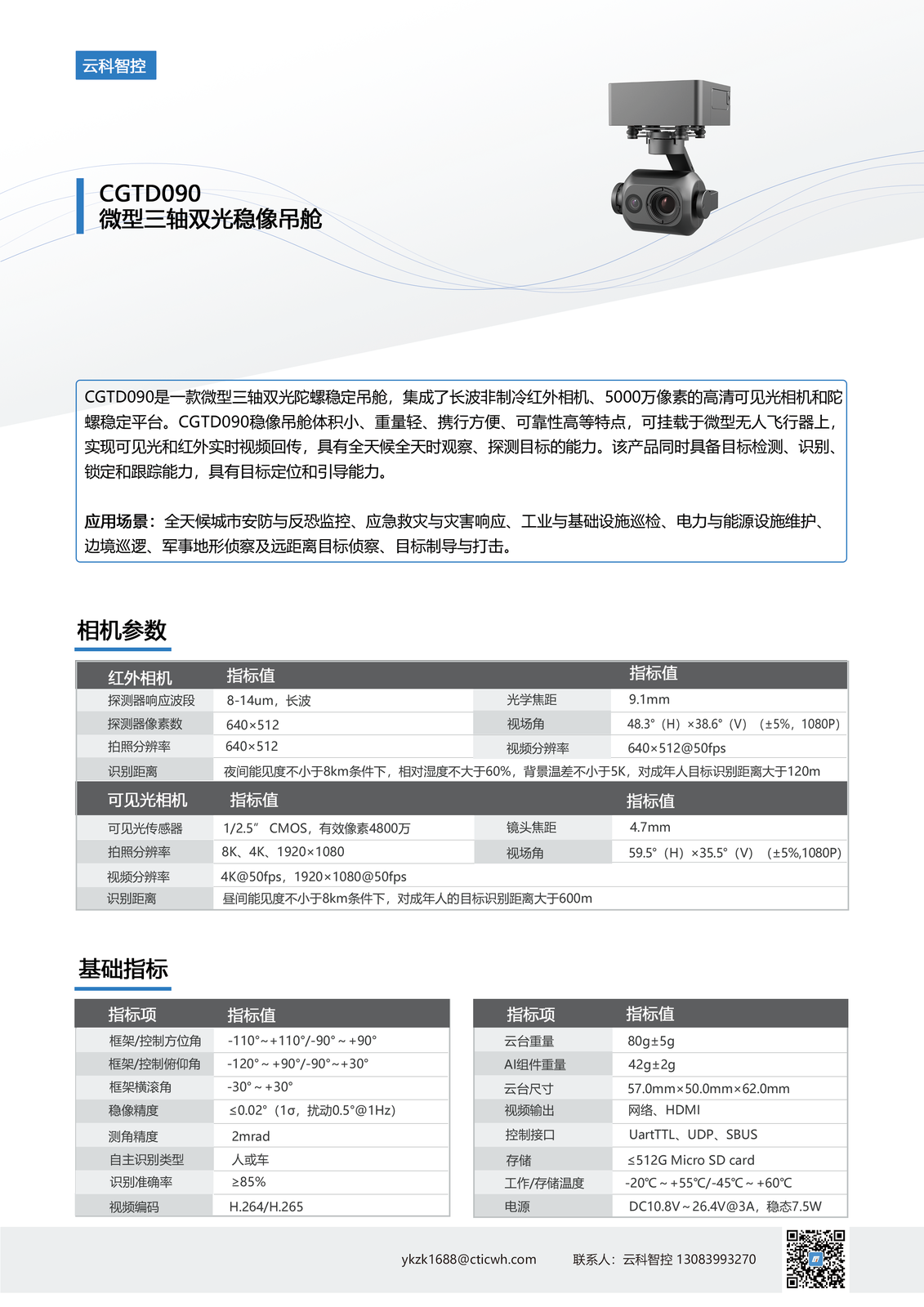

The CGTD090 is a micro 3-axis dual-sensor inertial stabilized guidance gimbal with a 50MP wide-angle visible camera (1/2.5" CMOS, 48MP effective), a long-wave uncooled thermal camera (640x512) and a gyro-stabilized platform. Gimbal 80±5g, total ≤122g. Visible: 59.5°x35.5° FOV, 8K photo and 4K@50fps video, >350m daytime recognition. Thermal: 8-14μm, 9.1mm, 48.3°x38.6° FOV, >120m night recognition. ≤0.02° (1σ) 3-axis stabilization with autonomous recognition, matching, detection, tracking and real-time guidance output.
Key Features
50MP ultra-long-range imaging— 50MP ultra-long-range imaging
High-precision inertial stabilization— High-precision inertial stabilization
Target guidance capability— Target guidance capability
All-weather dual-sensor operation— All-weather dual-sensor operation
Application Scenarios
All-weather urban security & anti-terrorismEmergency rescue & disaster responseIndustrial & infrastructure inspectionBorder patrolMilitary terrain reconnaissance & long-range reconnaissanceTarget guidance & strike
