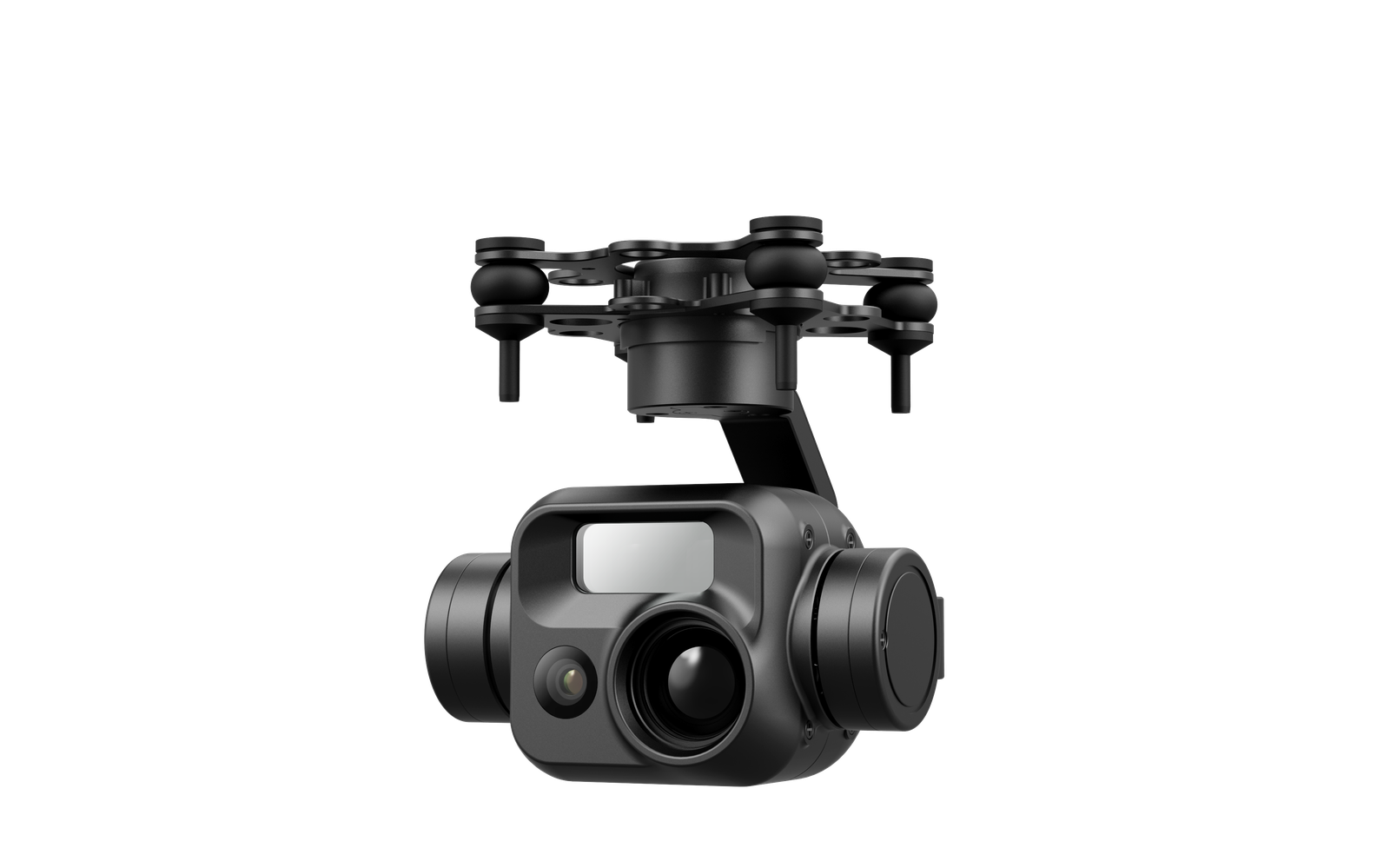

CGTT155 3-Axis Tri-Sensor Guided & Ranged Gimbal
50MP visible + 640x512 thermal + 1200m laser rangefinder, tri-sensor guided gimbal
Core Highlights
- Tri-sensor: visible + thermal + laser rangefinder
- Laser ranging 10-1200m, ±1m accuracy
- 400m day / 220m night recognition

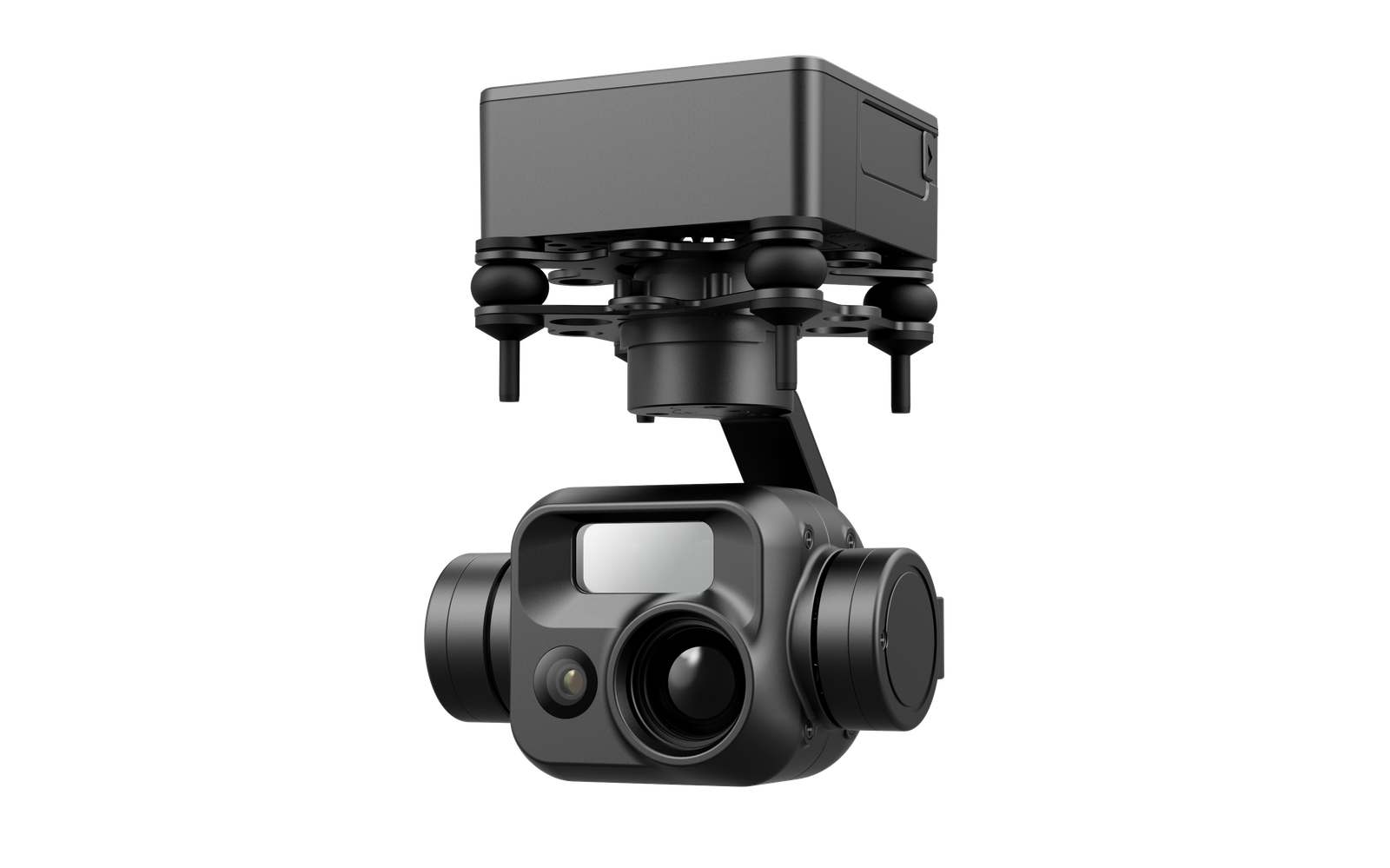

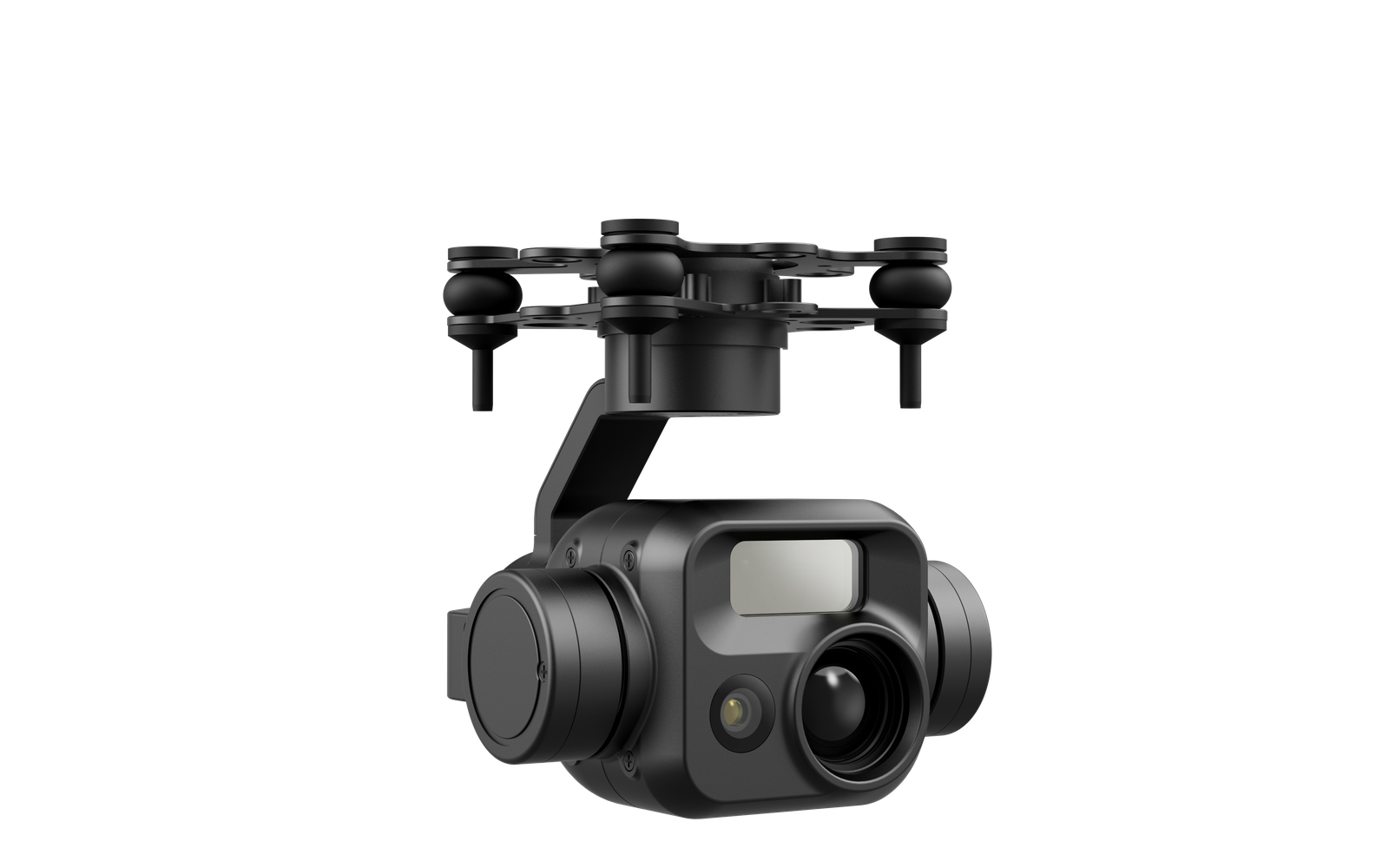

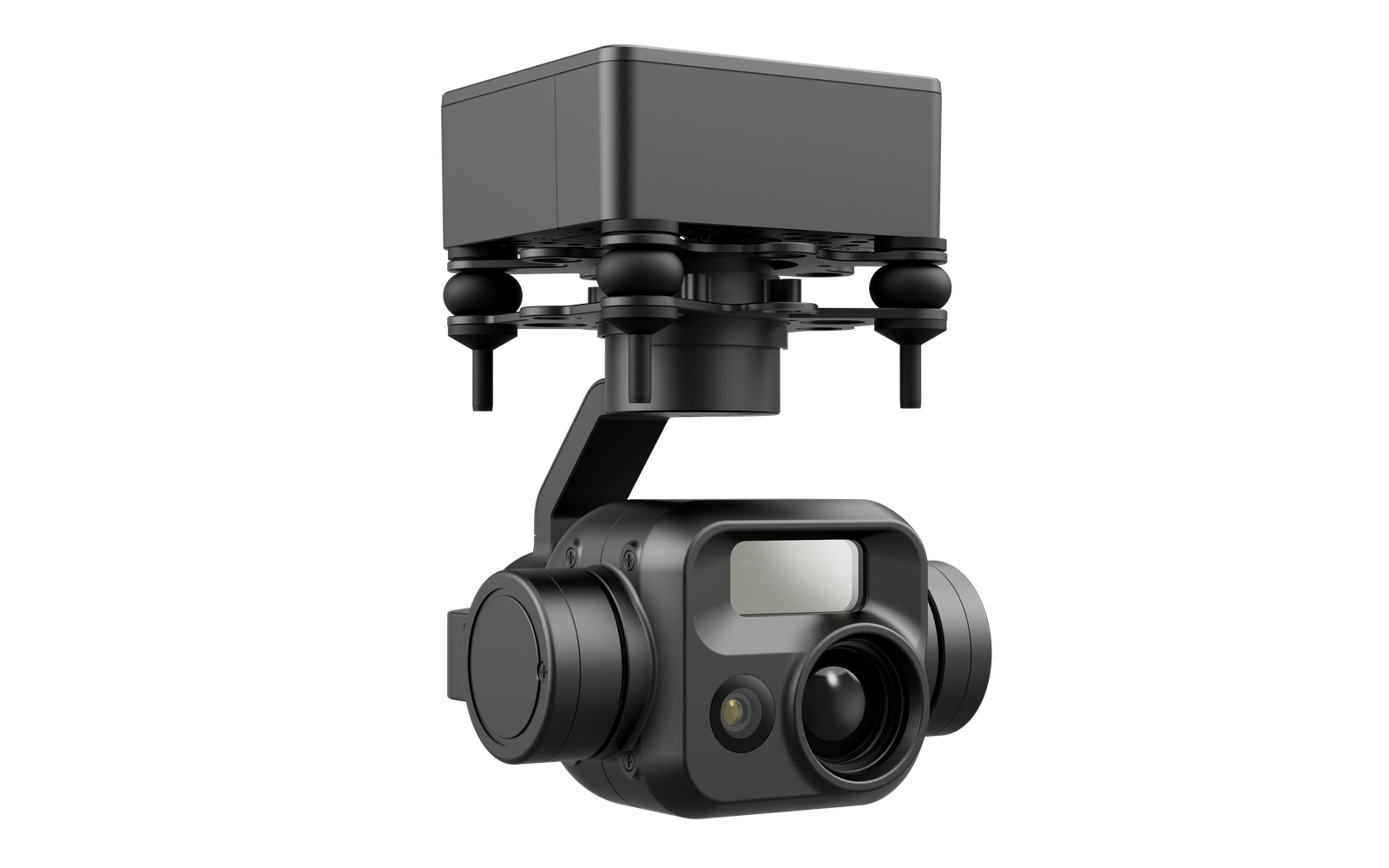

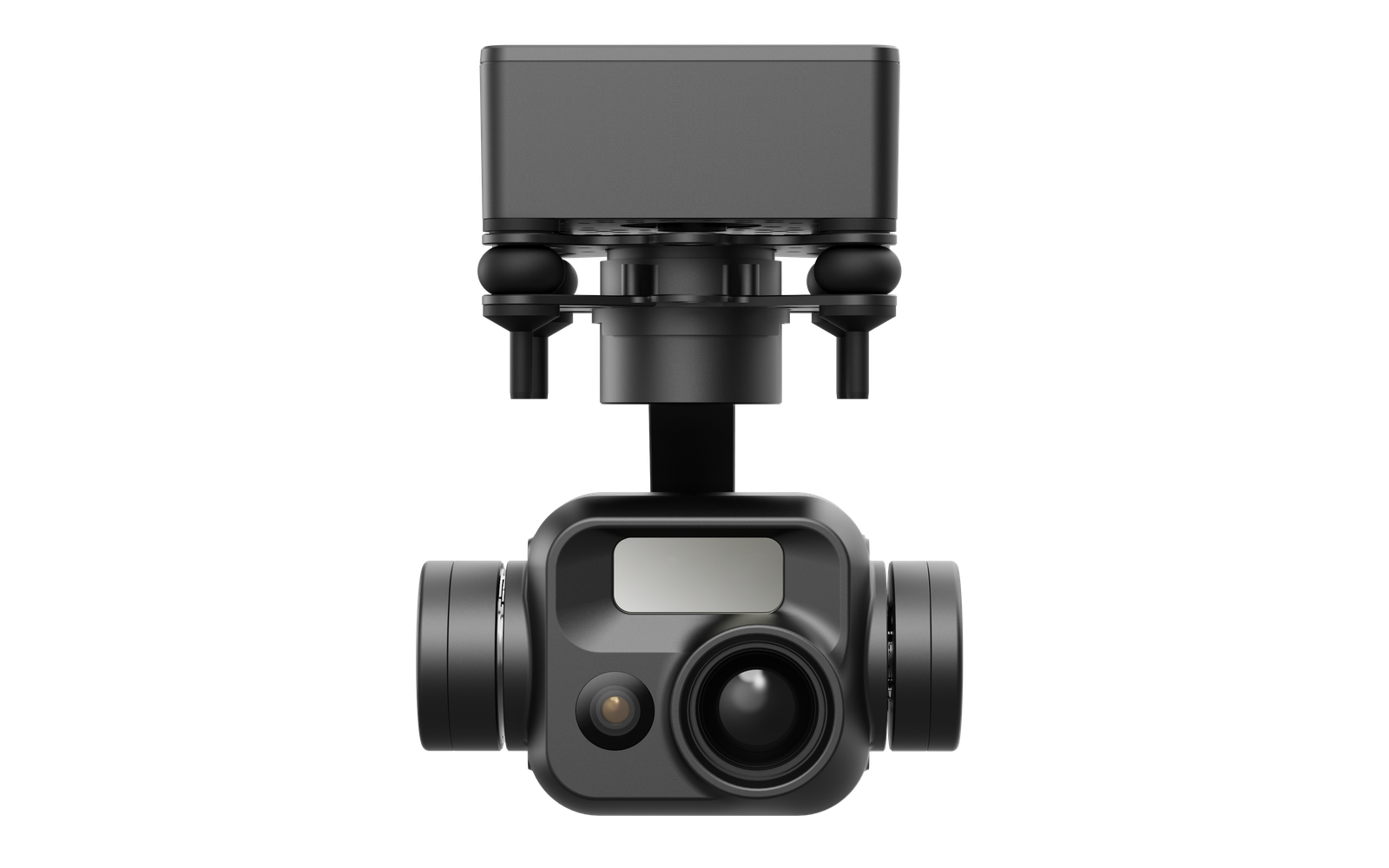

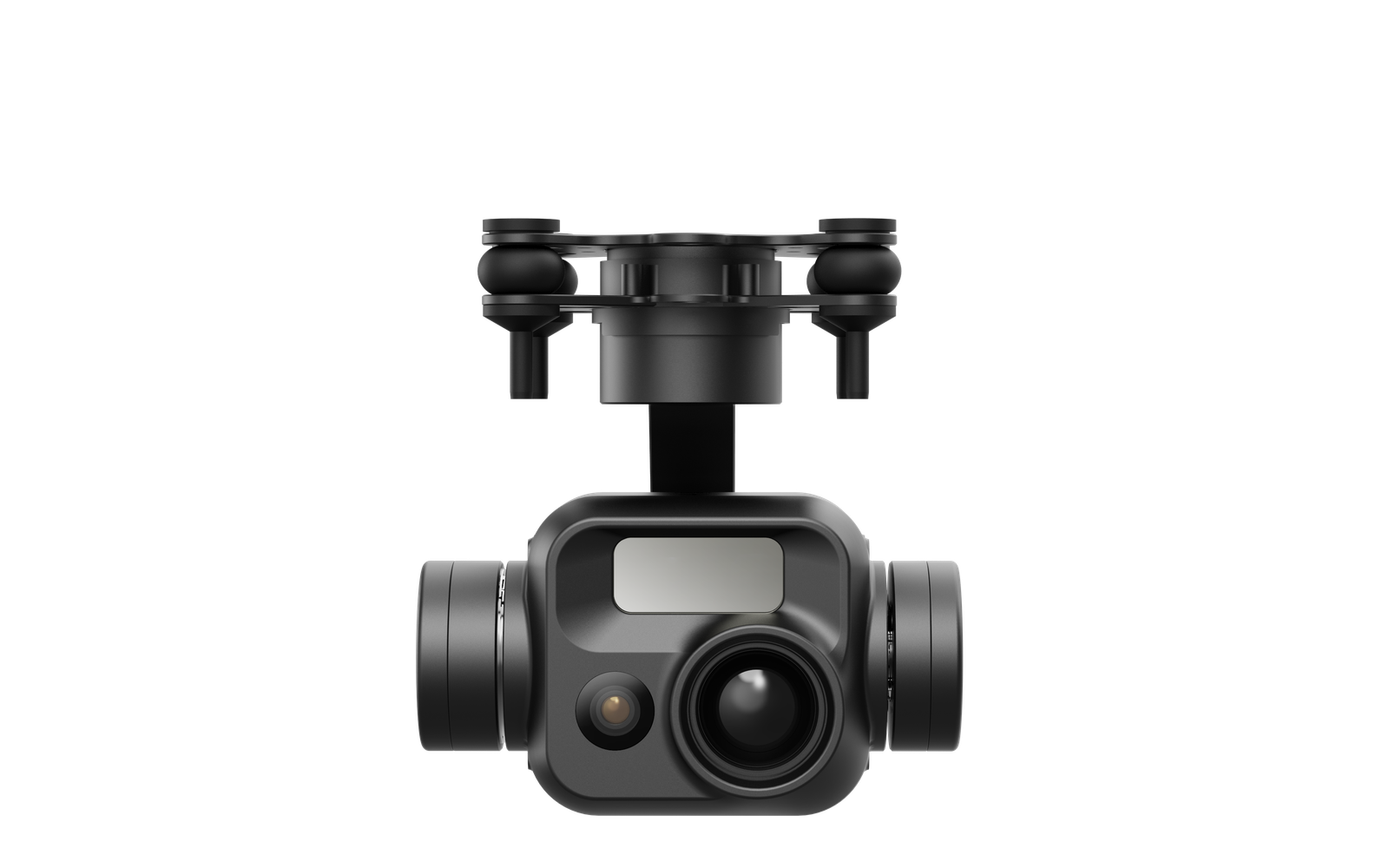

The CGTT155 micro 3-axis tri-sensor inertial stabilized positioning & guidance gimbal integrates a 50MP HD wide-angle visible camera, a long-wave uncooled thermal camera (640x512) and a laser rangefinder. The Class-1 laser rangefinder: 905nm, 10m-1200m range, ±1m accuracy, ≤4Hz rate. Thermal: 8-12μm, 18mm lens, 24.4°x19.5° FOV, >220m night recognition. Visible: 8K photo, 4K@50fps video, >400m daytime recognition. Gimbal 165±5g, total 207g, outputting synchronized distance + image + positioning data.
Key Features
Tri-sensor fusion detection— Tri-sensor fusion detection
High-precision laser ranging— High-precision laser ranging
Ultra-long-range recognition— Ultra-long-range recognition
Real-time guidance signal— Real-time guidance signal
Application Scenarios
All-weather urban security & anti-terrorismEmergency rescue & disaster responseIndustrial & infrastructure inspectionBorder patrolMilitary terrain reconnaissance & long-range reconnaissanceTarget guidance & strike
